Pinarello F1 105 - Image 1
Click to enlarge
Pinarello

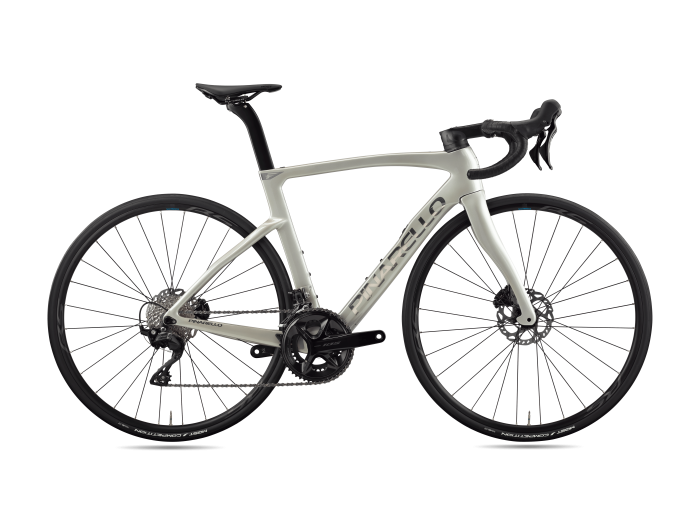

Pinarello F1 105

€3,200.00

Compare
Add to wishlist

Pinarello F1 105

CE: SEAT TUBE CENTER - END CC: SEAT TUBE CENTER - CENTER L: TOP TUBE CENTER - CENTER A[°]: SEAT TUBE ANGLE, B[°]: HEADTUBE ANGLE P: CHAINSTAY T: HEADTUBE D: BB DROP R: FORK RAKE G: FORK HEIGHT, REACH, STACK
CE CC L A [°] B [°] P T D R G REACH STACK
425 430 500 74.4 69.5 406 97 67 43 373 351.3 502.5
450 465 515 74.4 70.5 406 104 72 43 373 365.2 517.7
465 500 525 74 71.4 408 109 72 43 373 372.1 525.5
485 515 535 73.7 72 408 114 72 43 373 378.1 532.3
500 530 545 73.7 72.5 408 123 72 43 373 385.6 542.6
515 545 555 73.4 72.8 410 138 72 43 373 388.3 557.9
525 560 565 73 73.2 410 149.5 72 43 373 390.8 570.3
560 575 578 73 73.7 410 178 72 43 373 395.4 599.3
580 595 600 72.4 73.4 410 220 67 43 373 400.3 633.5
Size guide
Κωδικός προϊόντος: Μ/Δ Κατηγορία:

BORN TO RACE, NO DISCUSSION



Our history is one of extraordinary victories, iconic bicycles, passion, and expertise. The new Pinarello F was born with this unique DNA, created to offer extremely high performance and guide you straight to victory. All true riders know that what goes up, must go down. For this reason, the Pinarello F is designed to excel on all terrain and is as adept at climbing as it is comfortable on a high-speed descent. This is what we mean by ALL-ROUND PERFORMANCE.

TYRE CLEARANCE

UP TO 32MM
32mm tires to unlock the frames’ true potential in terms of both comfort and speed.

DOWNTUBE

New DOWNTUBE shape, reduced thickness for improve aero performance



E-TICR
HEADSET

To reduce the width of the headtube, we designed an innovative elliptical steering tube and completely new headset using bearings of a different diameter, wider on the bottom and narrower at the top. We also moved the internal cable routing from the sides to the front of the steering tube.



ONDA
FORK

The new slimmer fork design improves aerodynamics, with a 47mm rake, tested with pro rider feedback to improve handling and speed on descents.

HEAD
TUBE

New Aero headtube, with increased surface and softer lines to improve aerodynamics and stiffness.

AERO
KEEL

New Aero KEEL BB, reduced volume compared with Dogma F, improved stiffness, cleaner look.

INTEGRATED
SEATCLAMP

Frontal integrated seat clamp, for a cleaner look and protection from sweat and dust.


  •
SPECS

Frame: Torayca T600 UD, internal cable routing, Italian BB, UCI approved

Drivetrain: Shimano 105

Brakes: Shimano 105 2 pistons, 160mm rotor

Stem: Jaguar XA Aero TiCR

Saddle: ATMOS F24-97 STEEL RAIL

Seatpost: FSC Frontal Seat Clamp

Tyres: Most 30

Axles: MOST Ultralight Custom Axle 12x100 & 12x142, Tool-free removal
